Lab A - Build Software

Goals

We’ll setup a CI Pipeline with source code tests, build, and then push the artifact to a remote repository!

Lab Guide

Login and app link

1. Login to Harness at https://workshop.harness.io using the credentials provided.

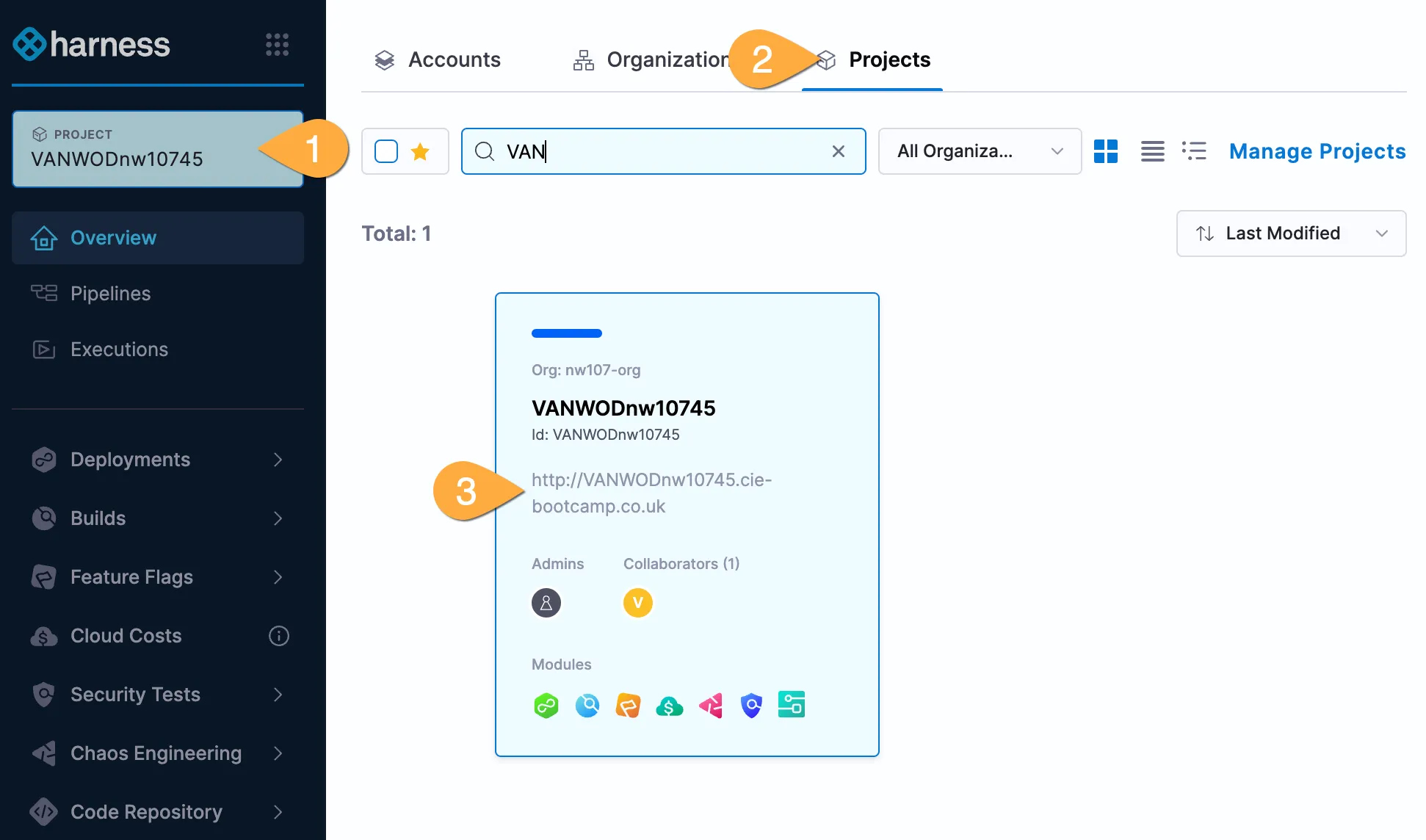

2. Ensure your project is selected: 1 click on project, 2 click/ensure project level, 3 click on project shown.

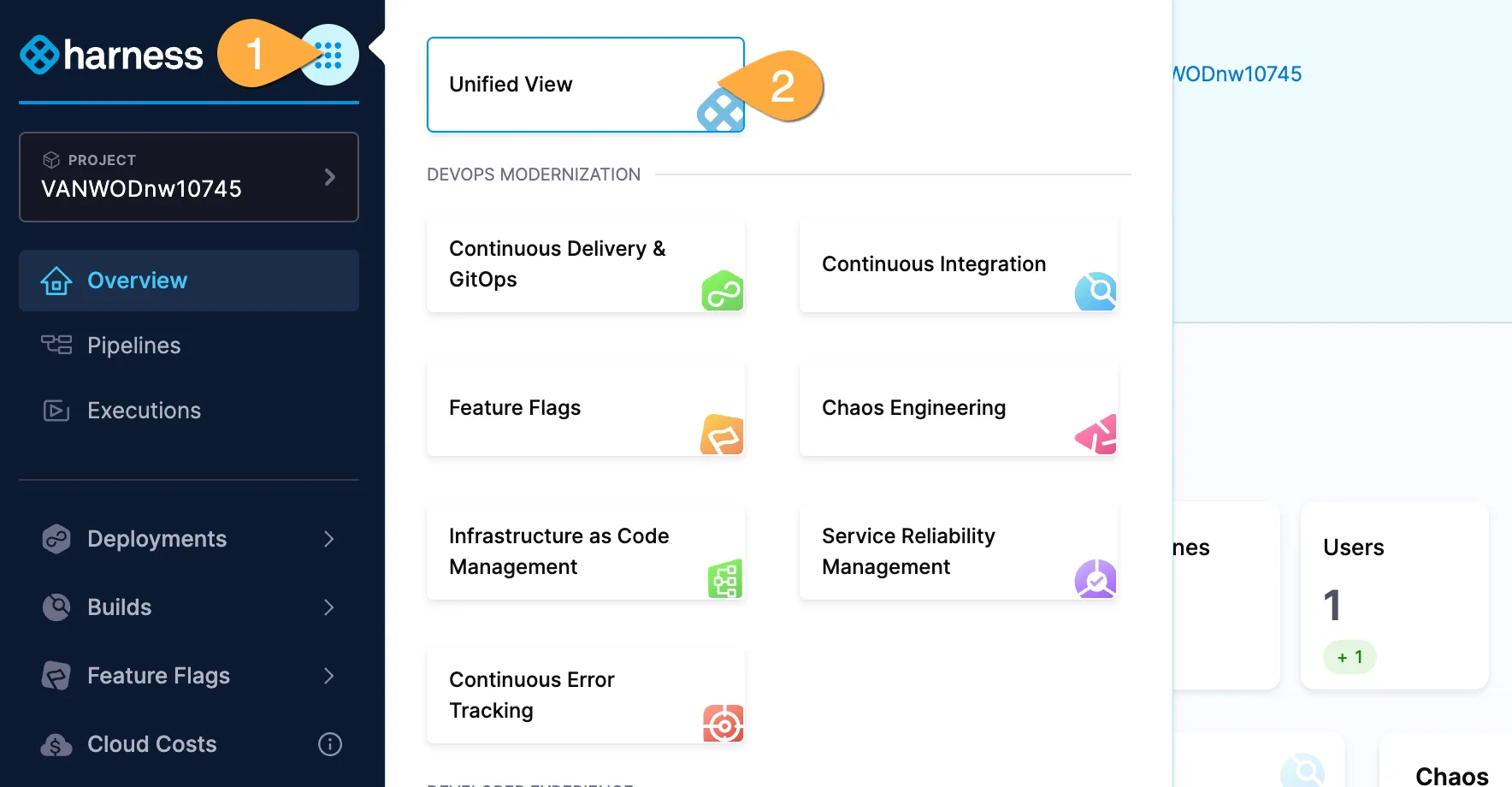

3. Get your personal application link: 1 click the hamburger button, 2 click on Unified View.

4. then 1 click-hold and drag over your URL (it will look different). Right-click and copy the URL.

   stop and smell the code!

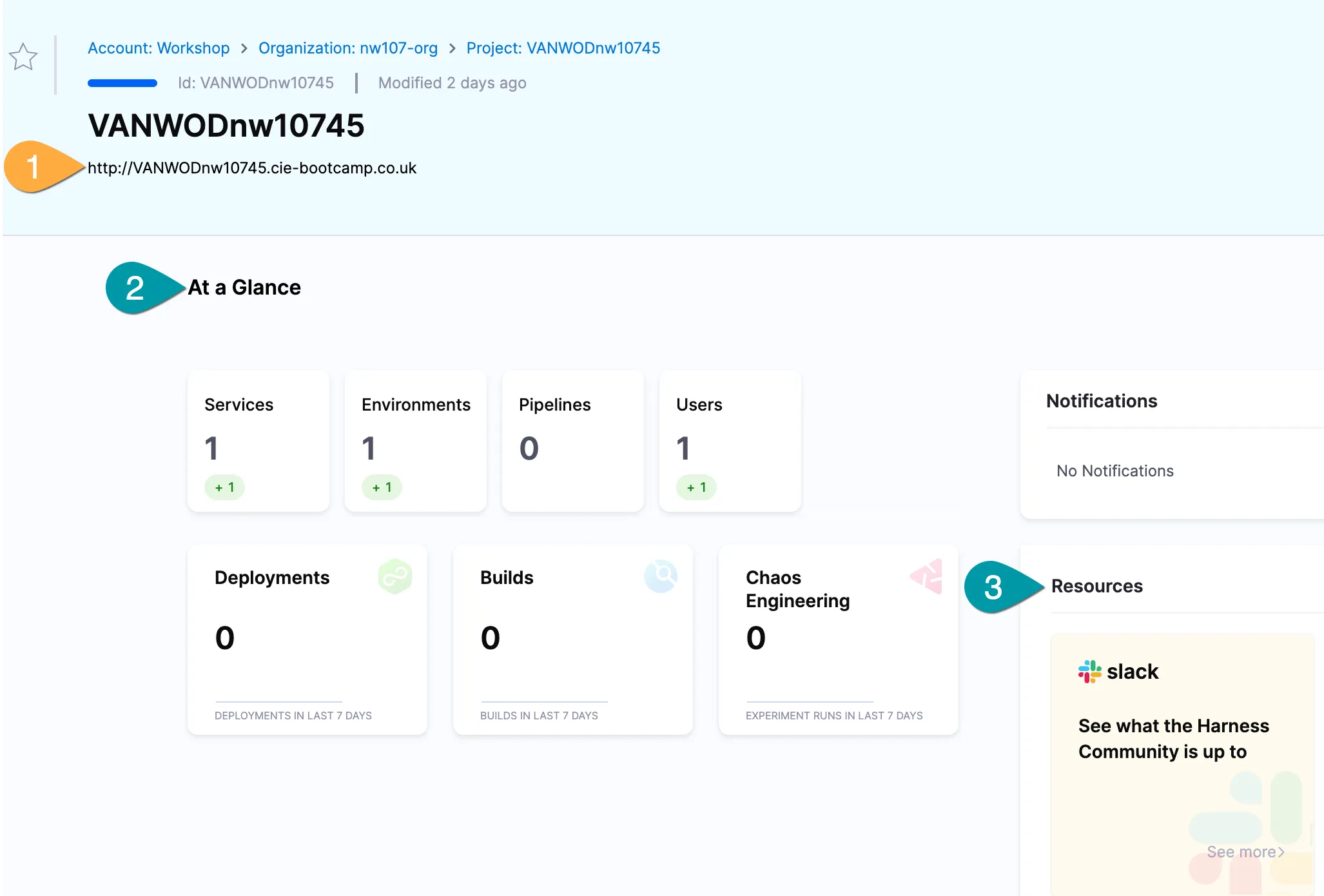

   This is an overview page for your project offering a quick high level view of the landscape: 2 highlights all services, pipelines, builds and deployments, 3 has great links to more information, help, and community content!

5. Open a new tab in your browser and then paste the URL into the address bar and press enter.

   AHHH! It’s BROKEN!

   Don’t worry, this is expected. We haven’t deployed anything yet! We’ll get to that in the next lab. :)

   Our first pipeline

6. Return to the Harness Platform tab then: 1 click Pipelines, 2 Click Create a Pipeline

7. In the box that pops up: 1 give your pipeline a name, 2 click Inline, 3 click Start

   Inline vs. Remote

   We’re using inline for this lab, but you can also use a remote repository like GitHub. This is useful for teams that want to keep their pipelines as code bundled up snuggly with application code. Cozy!

8. then: 1 click Add Stage, 2 Build as the Stage Type

9. then: 1 enter any name (ex: build), 2 ensure Clone Codebase is selected, 3 click for repo selector and pick harnessrepo, 4 click Set Up Stage

   Configure the infrastructure and tests

10. On the infrastructure page: 1 click Cloud, 2 click Continue

    Harness Cloud is the BESTEST cloud

    Something awesome happened right there. With zero configuration (well ok… ooooooone click!) you instantly configured an autoscaling build environment in the cloud that requires no management on your part and is dramatically less expensive than on-premise. Plus Harness is using the fastest bare-metal hardware in the Solar System. Seriously. Astronauts checked.

11. On the execution page: 1 click Add Step, 2 click Add Step

12. In the Step Library: 1 (optional) type tests in search box, 2 click Run Tests

13. In the Run Tests pane: 1 name the test Run Tests with Intelligence, 2 choose python, 3 Pytest, 4 Click Additional Configuration to expand…

    …5 copy and paste the install command below into the Pre-Command field…

    pip install pytest & cd ./python-tests

    … then: 6 click Apply Changes

    Leverage a template for software build!

14. Back in the Execution pane: 1 click Add Step, 2 click Use Template

15. In the Template Library: 1 click Compile Application, 2 click Use Template (far bottom right of screen)

16. In the template box: 1 name the template Compile, 2 click Apply Changes

    Save the completed build artifact

17. Back in the Execution pane: 1 click Add Step, 2 click Add Step

18. In the Step Library: 1 type docker in search box, 2 click Build and Push an image to Dockerhub

19. In the Build and Push pane:
    1 name the step Push to DockerHub
    2 select dockerhub for Docker Connector
    3 for Docker Respository paste:

    nikpap/harness-workshop

    4 click +Add in Tags, then paste:

    <+variable.username>-<+pipeline.sequenceId>

    5 Click Optional Configuration to expand
    6 For DockerFile paste:

    /harness/frontend-app/harness-webapp/Dockerfile

    7 For Context paste:

    /harness/frontend-app/harness-webapp

    8 Click Apply Changes. That was the biggest step in the workshop, you did it! ⭐️

20. In the top right of Pipeline Studio: 1 click Save, 2 click Run

    Note

    You might have noticed an option to pick the branch before running the pipeline. We’re using main for simplicity, but it’s a great example of how this complete build pipeline could easily be reused for other branches (or repositories or services).
